25g European USB Wall Charger

Product Categories

Shenzhen Tianyin Electronics Co., Ltd.

Contact Now

Name: 25g European USB Wall Charger
Brand: SZTY
Price: 1 USD

Brand Name : SZTY

Model Number : TPA-CA-22A-2A-W

Certification : CE

Place of Origin : China

MOQ : 3000pcs

Price : Negotiable

Payment Terms : T/T,30% deposit,70% balance payment before shipment

Supply Ability : 5KK/M

Delivery Time : 15-20 working days

Packaging Details : Polybag or Gift box

Input : AC 100~240V 50/60Hz 0.3A

Output : DC 5V/2A

Color : White or Black

Material : PC 94 V0

Size : 38.8*21.4*83.3mm

Certificate : CE

Contact Now

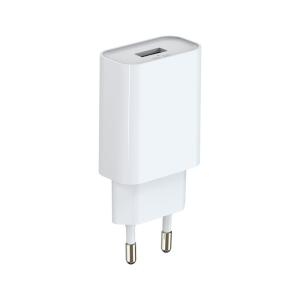

Single USB Port 5V/2A EU Wall Charger for Cellphone or Tablet

Product Details:

Model :TPA-CA-22A-2A-W
Input:AC 100~240V 50/60Hz 0.3A
Output:DC 5V/2A
Size:38.8*21.4*83.3mm
Weight:25g
Application:Cellphone/tablet

Product EMC Requirement

1.Surge Test

Test Criteria:EN55024,EN61000-4-5
Common mode(null line to GND):±2KV
Differential mode(Line to null Line):±1KV
Performance Criteria:B

2.ESD Test
Test Criteria:EN55024,EN61000-4-2
Air discharge:±8V
Contact discharge:±4KV
Performance Criteria:B

Working Conditions

Operating Ambient :0℃~40℃
Non-operating Ambient:-20℃-65℃

Packing Including:

1xTPA-CA-22A-2A-W Product
1xBlister
1xGift Box

25g European USB Wall Charger

Parameter Sheet:

Input	AC 100-240V 50/60Hz 0.3A
Output	DC 5V/2A
weight	25g
Size	38.821.483.3mm
Protection	Over voltage protection;Over current protection;Over temperature protection;Short circuit protection
Burn-in and Life test	2H
Drop test	6 sides,one time each side
Altitude	Operating under 2000 meters
Leakage current	≤0.25mA
Standby input power	≤0.1W
Hold up time	≥0.1ms
Start up time	≤3s
Certificate	CE
